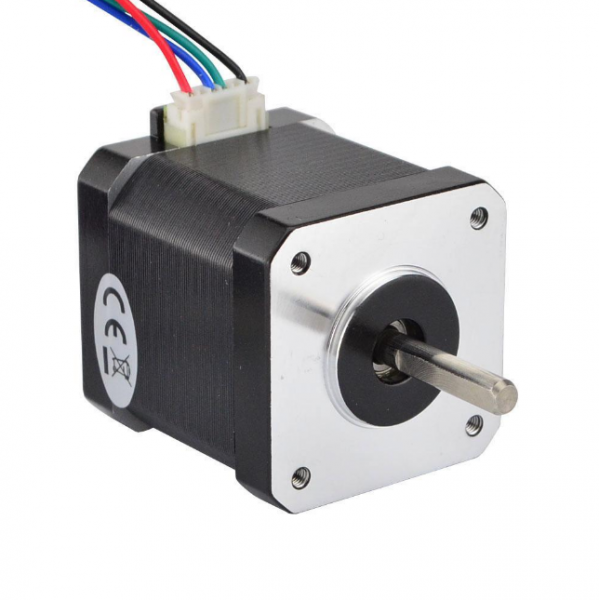

Motor stepper Nema 17 Bipolar 1.8deg 45Ncm (64oz.in) 1.68A 2.8V 42x42x48mm 17HS19-1684S1
Cod Produs:
6427616143978
Ai nevoie de ajutor?
0772210083
- Descriere
- Review-uri (0)
Specificatii:
Tip Motor : Bipolar
Unghiul de întoarcere/pas : 1.8 grade
Cuplu - 45 Ncm
Curent/faza : 1.68 A
Violtaj : 2.8V
Rezistența pe fază : 1.65 Ohms
Inductanta : 2.8mH ± 20%(1KHz)
Dimensiune : 42x42 mm
Lungime : 48 mm
Diametrul axului : 5mm
Lungimea Axului : 24mm
Numar bobine : 4
Lungime Cablu : 1000mm
Greutate motor : 390 g

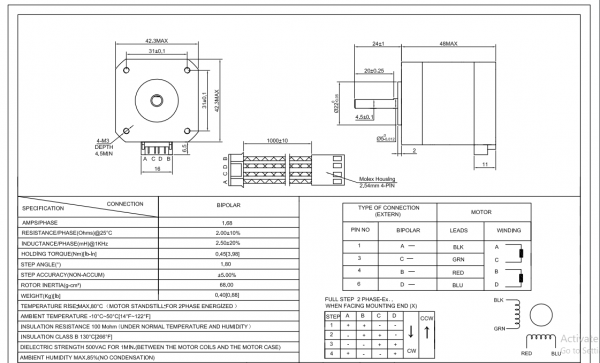

Conexiune
|
|||||||||||
