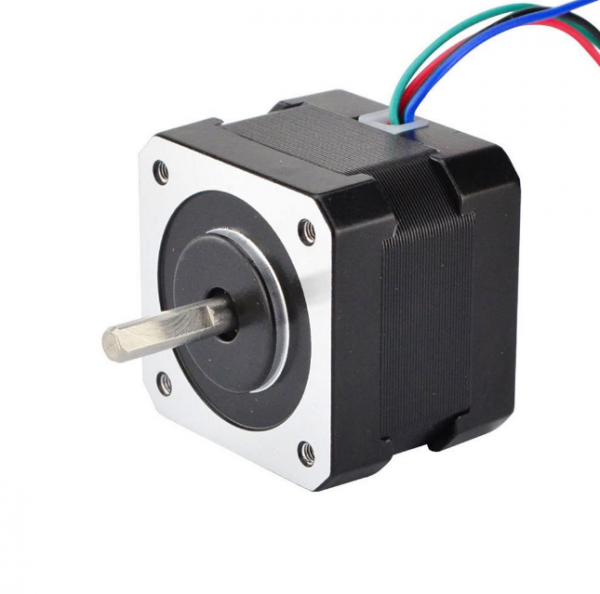

Motor stepper Nema 17 Bipolar 1.8deg 45Ncm (63oz.in) 1.5A 12V 42x42x39mm 4 Wires 17HS15-1504S
![Motor stepper Nema 17 Bipolar 1.8deg 45Ncm (63oz.in) 1.5A 12V 42x42x39mm 4 Wires 17HS15-1504S [1]](https://gomagcdn.ro/domains2/spindle.ro/files/product/original/motor-stepper-e-series-nema-34-stepper-motor-bipolar-1-8deg-4-8-nm-679-87oz-in-6-0a-86x86x80mm-4-wires-pas-cu-pas-34he31-6004s-copie-5926977916.png "Motor stepper Nema 17 Bipolar 1.8deg 45Ncm (63oz.in) 1.5A 12V 42x42x39mm 4 Wires 17HS15-1504S [1]")
![Motor stepper Nema 17 Bipolar 1.8deg 45Ncm (63oz.in) 1.5A 12V 42x42x39mm 4 Wires 17HS15-1504S [2]](https://gomagcdn.ro/domains2/spindle.ro/files/product/original/motor-stepper-e-series-nema-34-stepper-motor-bipolar-1-8deg-4-8-nm-679-87oz-in-6-0a-86x86x80mm-4-wires-pas-cu-pas-34he31-6004s-copie-0386933952.png "Motor stepper Nema 17 Bipolar 1.8deg 45Ncm (63oz.in) 1.5A 12V 42x42x39mm 4 Wires 17HS15-1504S [2]")
![Motor stepper Nema 17 Bipolar 1.8deg 45Ncm (63oz.in) 1.5A 12V 42x42x39mm 4 Wires 17HS15-1504S [0]](https://gomagcdn.ro/domains2/spindle.ro/files/product/medium/motor-stepper-e-series-nema-34-stepper-motor-bipolar-1-8deg-4-8-nm-679-87oz-in-6-0a-86x86x80mm-4-wires-pas-cu-pas-34he31-6004s-copie-5926977916.png "Motor stepper Nema 17 Bipolar 1.8deg 45Ncm (63oz.in) 1.5A 12V 42x42x39mm 4 Wires 17HS15-1504S [0]")
![Motor stepper Nema 17 Bipolar 1.8deg 45Ncm (63oz.in) 1.5A 12V 42x42x39mm 4 Wires 17HS15-1504S [1]](https://gomagcdn.ro/domains2/spindle.ro/files/product/medium/motor-stepper-e-series-nema-34-stepper-motor-bipolar-1-8deg-4-8-nm-679-87oz-in-6-0a-86x86x80mm-4-wires-pas-cu-pas-34he31-6004s-copie-0386933952.png "Motor stepper Nema 17 Bipolar 1.8deg 45Ncm (63oz.in) 1.5A 12V 42x42x39mm 4 Wires 17HS15-1504S [1]")
Motor stepper Nema 17 Bipolar 1.8deg 45Ncm (63oz.in) 1.5A 12V 42x42x39mm 4 Wires 17HS15-1504S
Cod Produs:
6427616144005
Ai nevoie de ajutor?
0772210083
- Descriere
- Review-uri (0)
Specificatii:
Tip Motor : Bipolar
Unghiul de întoarcere/pas : 1.8 grade
Cuplu - 45 Ncm
Curent/faza : 1.5 A
Violtaj : 12V
Rezistența pe fază : 2.3 Ohms
Inductanta : 4.4mH ± 20%(1KHz)
Dimensiune : 42x42 mm
Lungime : 39 mm
Diametrul axului : 5mm
Lungimea Axului : 20mm
Numar bobine : 4
Lungime Cablu : 500mm
Greutate motor : 280 g
Conexiune
|
|||||||||||
