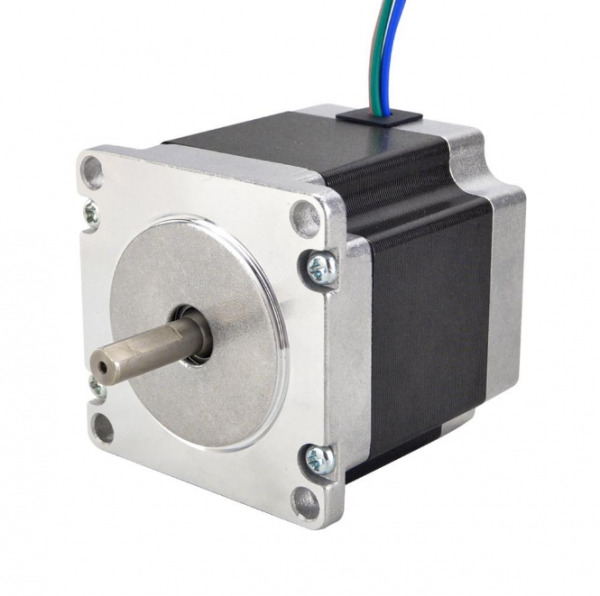

Motor stepper E Series Nema 23 Bipolar 1.8deg 1.26 Nm(178.04oz.in) 2.8A pas cu pas 23HE22-2804S
![Motor stepper E Series Nema 23 Bipolar 1.8deg 1.26 Nm(178.04oz.in) 2.8A pas cu pas 23HE22-2804S [1]](https://gomagcdn.ro/domains2/spindle.ro/files/product/original/motor-stepper-e-series-nema-23-bipolar-1-8deg-1-26-nm-178-04oz-in-2-8a-pas-cu-pas-4-wires-420890.png "Motor stepper E Series Nema 23 Bipolar 1.8deg 1.26 Nm(178.04oz.in) 2.8A pas cu pas 23HE22-2804S [1]")
![Motor stepper E Series Nema 23 Bipolar 1.8deg 1.26 Nm(178.04oz.in) 2.8A pas cu pas 23HE22-2804S [2]](https://gomagcdn.ro/domains2/spindle.ro/files/product/original/motor-stepper-e-series-nema-23-bipolar-1-8deg-1-26-nm-178-04oz-in-2-8a-pas-cu-pas-4-wires-696114.png "Motor stepper E Series Nema 23 Bipolar 1.8deg 1.26 Nm(178.04oz.in) 2.8A pas cu pas 23HE22-2804S [2]")
![Motor stepper E Series Nema 23 Bipolar 1.8deg 1.26 Nm(178.04oz.in) 2.8A pas cu pas 23HE22-2804S [3]](https://gomagcdn.ro/domains2/spindle.ro/files/product/original/motor-stepper-e-series-nema-23-bipolar-1-8deg-1-26-nm-178-04oz-in-2-8a-pas-cu-pas-4-wires-086839.png "Motor stepper E Series Nema 23 Bipolar 1.8deg 1.26 Nm(178.04oz.in) 2.8A pas cu pas 23HE22-2804S [3]")
![Motor stepper E Series Nema 23 Bipolar 1.8deg 1.26 Nm(178.04oz.in) 2.8A pas cu pas 23HE22-2804S [0]](https://gomagcdn.ro/domains2/spindle.ro/files/product/medium/motor-stepper-e-series-nema-23-bipolar-1-8deg-1-26-nm-178-04oz-in-2-8a-pas-cu-pas-4-wires-420890.png "Motor stepper E Series Nema 23 Bipolar 1.8deg 1.26 Nm(178.04oz.in) 2.8A pas cu pas 23HE22-2804S [0]")
![Motor stepper E Series Nema 23 Bipolar 1.8deg 1.26 Nm(178.04oz.in) 2.8A pas cu pas 23HE22-2804S [1]](https://gomagcdn.ro/domains2/spindle.ro/files/product/medium/motor-stepper-e-series-nema-23-bipolar-1-8deg-1-26-nm-178-04oz-in-2-8a-pas-cu-pas-4-wires-696114.png "Motor stepper E Series Nema 23 Bipolar 1.8deg 1.26 Nm(178.04oz.in) 2.8A pas cu pas 23HE22-2804S [1]")
![Motor stepper E Series Nema 23 Bipolar 1.8deg 1.26 Nm(178.04oz.in) 2.8A pas cu pas 23HE22-2804S [2]](https://gomagcdn.ro/domains2/spindle.ro/files/product/medium/motor-stepper-e-series-nema-23-bipolar-1-8deg-1-26-nm-178-04oz-in-2-8a-pas-cu-pas-4-wires-086839.png "Motor stepper E Series Nema 23 Bipolar 1.8deg 1.26 Nm(178.04oz.in) 2.8A pas cu pas 23HE22-2804S [2]")
Motor stepper E Series Nema 23 Bipolar 1.8deg 1.26 Nm(178.04oz.in) 2.8A 57x57x56mm 4 Wires pas cu pas 23HE22-2804S
Cod Produs:
6427616143862
Ai nevoie de ajutor?
0772210083
- Descriere
- Review-uri (0)

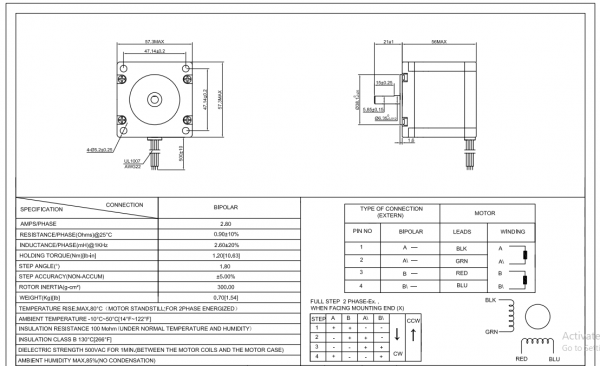

Specificatii:
Tip Motor : Bipolar
Unghiul de întoarcere/pas : 1.8 grade

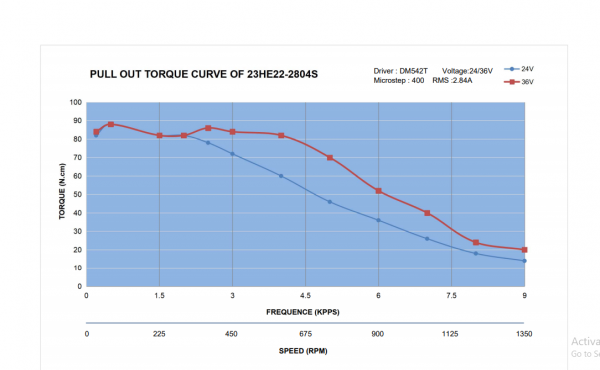

Cuplu - 1.26 Nm
Curent/faza : 2.8 A
Violtaj : 3.2V
Rezistența pe fază : 0.9 Ohms
Inductanta : 2.5 mH +/- 20%(1Khz)
Dimensiune : 57x57 mm
Lungime : 56 mm
Diametrul axului : 6.35 mm
Lungimea Axului : 24 mm
Numar bobine : 4
Lungime Cablu : 500mm
Greutate motor : 0.7 Kg
Conexiune
|
A+
|
A-
|
B+
|
B-
|
|
Black
|
Green
|
Red
|
Blue
|
